EN 853 2TE High Pressure Hydraulic Hose with High Tensile Strength, Flexibility, and Compatibility with Various Hydraulic Fluids

Product Categories
Hangzhou Paishun Rubber & Plastic Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

EN 853 2TE High Pressure Hydraulic Hose with High Tensile Strength, Flexibility, and Compatibility with Various Hydraulic Fluids

Brand Name : PASSIONCOHOSE

Model Number : P2TE

Certification : REACH, RoHS, CE

Place of Origin : China

MOQ : 500m

Price : negotiation

Payment Terms : T/T,L/C

Supply Ability : 200, 000meters/Month

Delivery Time : 20 to 30 working days

Packaging Details : rolls, cartons, pallets, etc.

Outer Cover : NBR

Sizes : 3/16" to 1"

Manufacturer : China Hose factory

Hose Letter : Customized

Pressure : 4 to 8 MPa

Burst Pressure : 16 to 32 MPa

Length : varies (e.g., 25 ft, 50 ft, 100 ft)

Inner Tube : NBR

Hose Surface : Smooth/wrapped surface

Oem : Yes

Logo : Customized

Contact Now

EN 854 2TE Low Pressure Hydraulic Rubber Hose

The EN 854 2TE is a high-quality, textile-reinforced hydraulic hose designed for low to medium-pressure applications. It is widely recognized for its excellent flexibility and durability in demanding industrial environments.

EN 853 2TE High Pressure Hydraulic Hose with High Tensile Strength, Flexibility, and Compatibility with Various Hydraulic Fluids

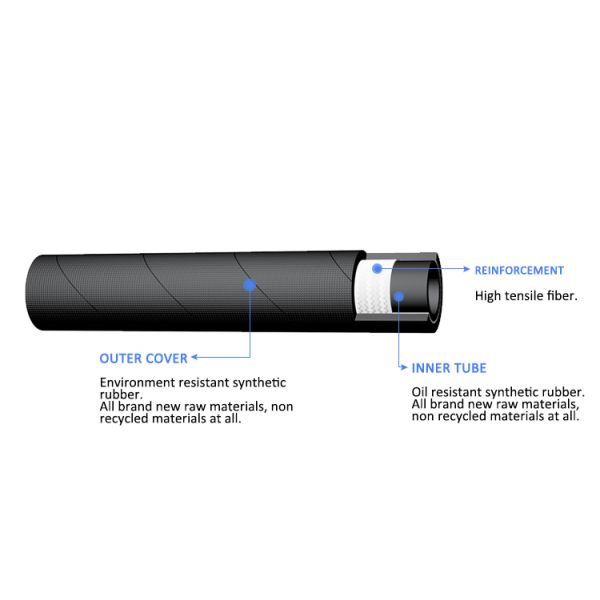

Construction & Specifications
  • Inner Tube: Synthetic Rubber
  • Outer Cover: Oil & Weather Resistant Synthetic Rubber
  • Temp. Range: -40C ~ +100C (-40F ~ +212F)
  • Standard: EN 854 2TE
  • Reinforcement: One Braid of High Tensile Fiber
  • Option: Smooth Cover / Wrapped Cover
Technical Specifications
Part Number I.D. (inch) I.D. (mm) O.D. (mm) W.P. (MPa) B.P. (MPa) Min. Bend Radius (mm)
P2TE-03 3/16" 5.0 11.8 8.0 32 35
P2TE-04 1/4" 6.5 13.0 7.5 30 40
P2TE-05 5/16" 8.0 14.6 6.8 27.2 50
P2TE-06 3/8" 9.8 16.5 6.3 25.2 60
P2TE-08 1/2" 12.8 19.8 5.8 23.2 70
P2TE-10 5/8" 16.0 23.9 5.0 20.0 90
P2TE-12 3/4" 19.0 26.4 4.5 18.0 110
P2TE-16 1" 25.4 33.8 4.0 16.0 150
Application Range

Application for EN 854 1TE/2TE/3TE

  • This street light features high brightness, energy saving, environmental protection, and easy installation. It has a waterproof rating of IP67 and has passed CE certification. It is suitable for schools, parks, roadsides, factories, squares, etc. It has a warranty period of 3 years. Moreover, we can provide various styles to meet your needs.
EN 853 2TE High Pressure Hydraulic Hose with High Tensile Strength, Flexibility, and Compatibility with Various Hydraulic Fluids EN 853 2TE High Pressure Hydraulic Hose with High Tensile Strength, Flexibility, and Compatibility with Various Hydraulic Fluids
